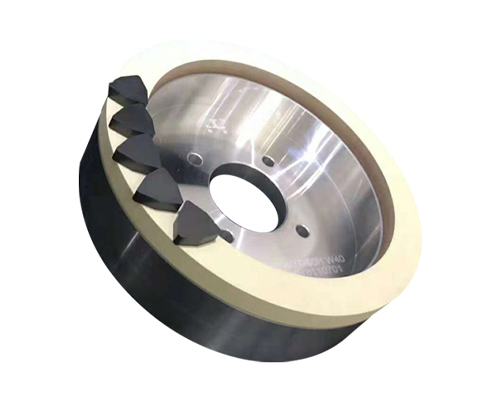

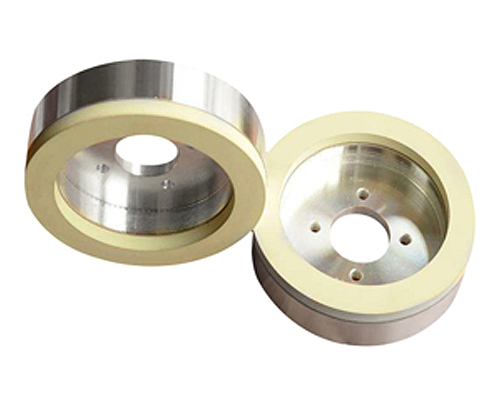

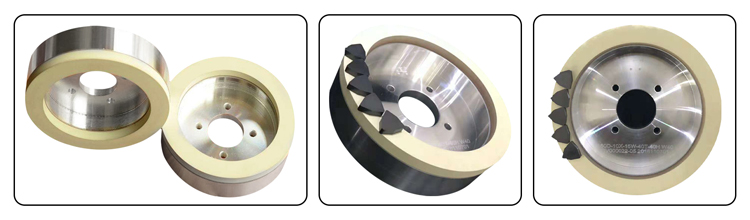

Ceramic(Vitrified)Grinding Wheel

Introduction: Vitrified bond are typically selected for grinding PCD and PCBN tools,ceramics and semi-conductors.

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

Product details
parameter

Features:

1）high efficiency；

2）abrasion resistance, high consumption

3）Small grinding force, grinding temperature is low

4) high accuracy and good surface quality of workpiece, the shape of the workpiece stability is good

5）with more pores, grinding is good for chip removal and cooling, not easy to jam, not easy to burn the workpiece

6）easy sharping

Application:

Widely used for grinding PCD tools, PCBN tools, polycrystalline diamond, diamond knife, PDC cutter, gem knife, tungsten steel, carbide, ceramics, glass, etc. The grinding wheel combines the performance and high hardness of the ceramic together,to make the process with greater strength and stronger grinding force.

D	T	X	H	Con	Grits Size
mm	mm	mm	mm	%	D151 D126 D107 D91 D76 D64 D54 D46
50	0.8-20	3-20	16-25.4	50%-150%
75	0.8-20	3-20	22.23-25.4	50%-150%
100	3- 12	10-20	22.23-25.4	50%-150%
125	3-15	10-20	22.23-25.4	50%-150%
150	3-20	10-25	22.23-25.4	50%-150%
175	6-20	10-25	22.23-25.4	50%-150%
200	23-20	10-25	22.23-25.4	50%-150%
250	6-25	10-30	22.23-25.4	50%-150%
300	6-25	10-30	22.23-25.4	50%-150%
350	10-25	10-30	22.23-25.4	50%-150%
400	6-30	20-35	22.23-25.4	50%-150%
450	6-30	20-25	22.23-25.4	50%-150%
500	10-30	20-35	22.23-25.4	50%-150%
600	20-30	25-35	22.23-52.0	50%-150%
other size are upon requirement
