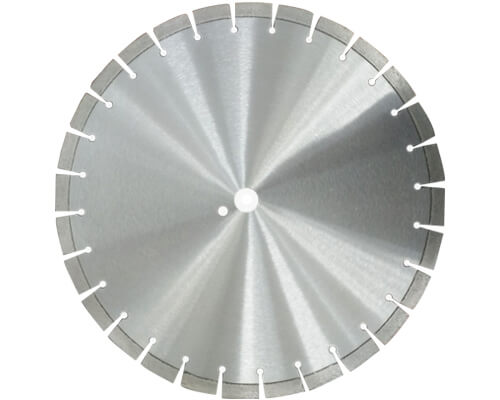

Concrete Mansory Firebrick Cutting Disc

Usage Concrete Asphalt Mansory Firebrick
Size 300~2700mm
Certificate Key slot, narrow slot, U slot, Custom-Made Narrow slot
Matrix 56MN

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

Product details
parameter

Concrete Asphalt Mansory Firebrick Cutting Disc are used by professional contractors.demolition contrctors, general commercial contractors, paving companies. General purpose saw blade and professional saw blade are available for your selection.

1. Laser welding diamond saw blade can be used for dry or wet condition, cutting fast and not easy to fall teeth, adding the cutting efficency and raising the use life of blade;

2. professional Concrete cutting blade can be used with a high power walk behind saw up to 35 HP. For use on a wide range of applications: floors, walkways, parking lots, highways, loading docks and city streets.

Product Name	Saw blade Diameter(mm)	Segment Dimension(mm)	Segment Number(pcs)	Shape
3BETTER Diamond Segment for Concrete	300	40x3.2x10(15,20)	21	Normal or according to customer's requirement
350	40x3.2x10(15,20)	24
400	40x3.6x10(15,20)	28
450	40x4.0x10(15,20)	32
400	40x3.6x10(15,20)	28
450	40x4.0x10(15,20)	32
500	40x4.0x10(15,20)	36
550	40x4.6x10(15,20)	40
600	40x4.6x10(15,20)	42
650	40x5.0x10(15,20)	46
700	40x5.0x10(15,20)	50
750	40x5.0x10(15,20)	54
800	40x5.5x10(15,20)	57
850	40x5.5x10(15,20)	58
900	24x7.5x13(15)	64
1000	24x7.5x13(15)	70
1200	24x8.0x13(15)	80
1400	24x8.5x13(15)	92
1600	24x9.5x13(15)	108
1800	24x10x13(15)	120
2000	24x11x13(15)	128
2200	24x11x13(15)	132
2500	24x12.5x13(15)	140
2700	24x12.5x13(15)	140

Other related products:
Laser welding diamond blade Sintered diamond blade Sliver welding diamond blade

Product Name	Saw blade Diameter(mm)	Segment Dimension(mm)	Segment Number(pcs)	Shape
3BETTER Diamond Segment for Concrete	300	40x3.2x10(15,20)	21	Normal or according to customer's requirement
350	40x3.2x10(15,20)	24
400	40x3.6x10(15,20)	28
450	40x4.0x10(15,20)	32
400	40x3.6x10(15,20)	28
450	40x4.0x10(15,20)	32
500	40x4.0x10(15,20)	36
550	40x4.6x10(15,20)	40
600	40x4.6x10(15,20)	42
650	40x5.0x10(15,20)	46
700	40x5.0x10(15,20)	50
750	40x5.0x10(15,20)	54
800	40x5.5x10(15,20)	57
850	40x5.5x10(15,20)	58
900	24x7.5x13(15)	64
1000	24x7.5x13(15)	70
1200	24x8.0x13(15)	80
1400	24x8.5x13(15)	92
1600	24x9.5x13(15)	108
1800	24x10x13(15)	120
2000	24x11x13(15)	128
2200	24x11x13(15)	132
2500	24x12.5x13(15)	140
2700	24x12.5x13(15)	140
