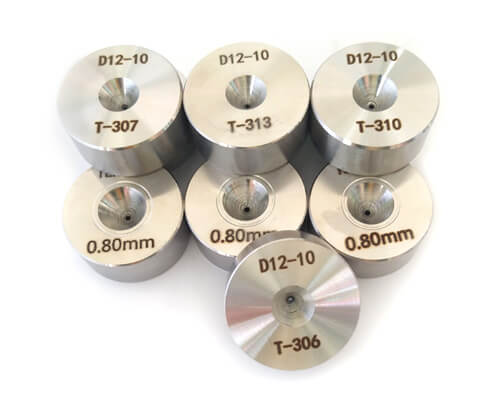

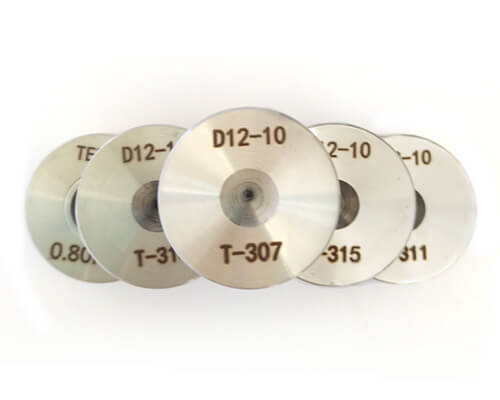

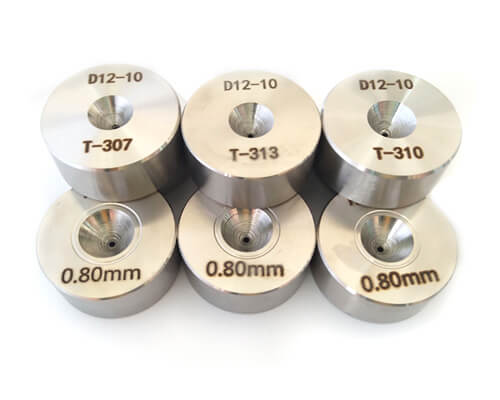

ND wire drawing die

Function Wire Drawing
Application Iron, Steel, Silver, Gold
Certificate ISO9001:2000

Diamond Materials

Synthetic diamond grits and powders

Saw Diamond Grit (SMD)Resin Bond Diamond (R Series)Metal Bond Diamond(MBD)Boron Doped Diamond(BDD)

Diamond Micron

single crystal diamond micron Diamond Micron

Cubic Boron Nitride (CBN)

CBN Micron Powder Cubic Boron Nitride

Ti/Ni Coated synthetic diamond/CBN

NI Coated Diamond and CBN Ti coated Diamond and CBN

Single crystal synthetic diamond

Monocrystal Diamond Plate(MCD)Big Size Synthetic Diamond (BSSD)

Polycrystalline Diamond (PCD/TSP)

PCD Cutting Tool Blanks PCD/TSP

PCBN/PCD insert

Solid PCD/PCBN insert Tipped PCBN/PCD inserts

PCD/ND wire drawing die

PCD wire drawing die Nano Diamond Coating Drawing Die ND wire drawing die MCD wire drawing die Tungsten Carbide wire drawing die PCD/ND Wire Drawing Die

Polycrystalline CVD diamond

CVD Diamond

Boron doped diamond BDD

BDD Electrodes(BDDA)Boron Doped CVD Diamond Boron Doped Diamond(BDD)

Product details
parameter

Natural diamond drawing die (ND wire drawing dies) usually selected diamond drawing die raw material diamond for LA type diamond. This type of diamond contains a certain amount of nitrogen impurities (0.1% orders of magnitude), and these nitrogen impurities are assembled into a small cluster.

It also contains small pieces (associated with nitrogen impurities), and the exact structure of these small pieces is unknown. We produce natural diamond wire drawing dies from high-quality natural diamond materials, after strict selection, processing. High surface finish, good wear resistance is its main advantage. Suitable for the drawing of various types of wire with high surface quality requirements.

Hole Size Range: 0.015mm-2.00mm

Recommended to do finished dies (outlet mold), micro-wire mold, mould which requires the wire surface of a particularly bright

Application:

platinum rhodium wire, gold filament, silver wire, copper, aluminum, molybdenum, nickel, tin plated copper, tungsten, copper aluminum alloy and other non-ferrous metal silk materials.

TYPE	DIE SIZE (mm)	STANDARD TOLERANCE (um)	STANDARD CASES
TYPE	DIE SIZE (mm)	STANDARD TOLERANCE (um)	A	B
ND DIES	<0.04	0.5	25	5
	0.04-0.07	0.5	25	5
	0.08-0.19	1	25	8
	0.2-0.39	1	25	8
	0.4-0.59	1	25	10
	0.60-0.10	2	25	10
	>1.0	3	30	15
PCD DIES	D6	0.10-0.15	25	7
	D12	0.10-0.80	30	15
	D15	0.50-1.50	30	15
	D18	1.00-2.30	30	15
	D21	1.60-3.40	30	15
	D24	2.60-4.60	42	20
	D27	3.00-5.80	55	24
	D30	4.00-11.20	55	24
	D33	6.00-12.50	60	28
	D36	8.00-13.50	70	35
	D	12.00-22.00	70	35
	D	20.00-32.00	85	40
