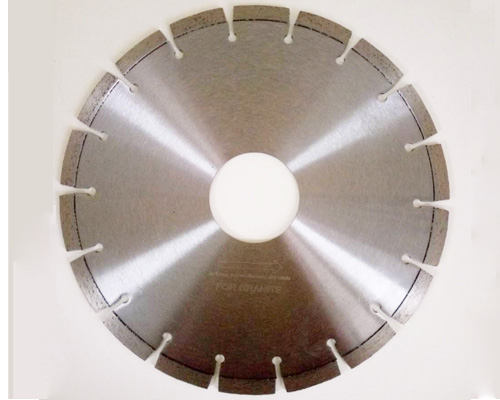

laser welding diamond blade

  • Usage Marble,Granite,Asphalt,concrete,clay and other brittle materials.
  • Size 4'',4.5'',5'',6'',7'',8'',9'',10'',11'',12'',14'',16'',18'',20'',24''
  • Slot types Key slot, narrow slot, U slot, Custom-Made Narrow slot
  • Matrix 56MN
  • Feature not easy to fall teeth

  • Product details
  • parameter
High temperature laser beam welds diamond segment and matrix contacting edge, and make them
combined together to be the laser welding diamond saw blade.
Our laser welding diamond blade have the characteristic of high efficiency and high wearability. With the updated laser welded technology, our laser welded diamond blade have solved the phenomena of segments dropping which existed in the brazed products, they are especially suitable for processing concrete and construction materials. By combining our success experience in other region, we can design the blades according to different processing purpose
Laser Welding Diamond Blade Application
General cutting of granite ,marble,masonry ,concrete materials, precise cutting of ceramic tiles,quarry tiles,water flood cooling enhances cutting quality and blade life ,engineering bricks ,and various kinds of construction materials.
Machinery
Hand held saw, circular saw, high speed power saw, Angle grinder, Walk behind saw low hp, Flat saw, Tile saw, Masonry saw, Stone Saw.

Parameter:
Outer Diameter Arbor Size Segment Dimension Segment Number
Inches Metric (mm) Inches Metric (mm)
4" 105 7/8" 22.23 32*2.0*8/10 8
4.5" 115 7/8" 22.23 32*2.0*8/10 9
5" 125 7/8" 22.23 32*2.2*8/10 10
6" 150 7/8" 22.23 32*2.2*8/10 12
7" 180 7/8" 22.23 32*2.4*8/10 13
8" 200 7/8" 22.23 32*2.4*8/10 13
9" 230 7/8" 22.23 32*2.6*8/10 16
10" 250 7/8" 22.23 32*2.6*8/10 18
12" 300 1" 25.4 32*3.0*8/10 20
14" 350 1" 25.4 32*3.2*8/10 24
16" 400 1" 25.4 32*3.4*8/10 28
18" 450 1" 25.4 32*3.6*8/10 32
20" 500 1" 25.4 32*3.6*8/10 35
24" 600 1" 25.4 32*4.2*8/11 42
                                                    Other Sizes are upon requirements
